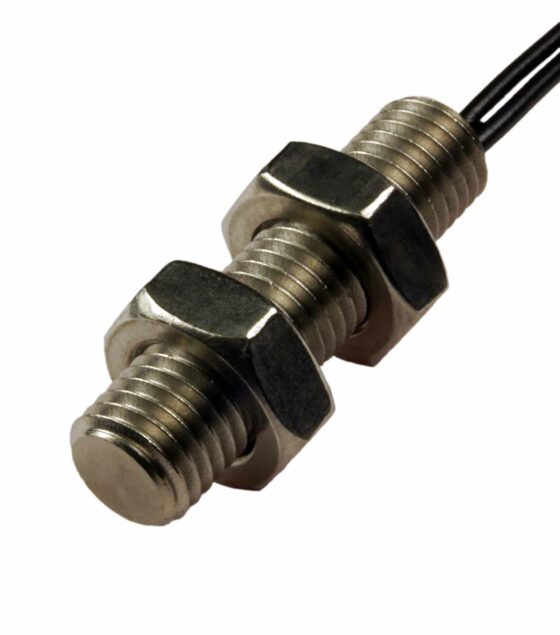

- Medium Threaded Stainless Steel Cylindrical Switch/Sensor – 5/16-24 Thread
- Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
- Form A (SPST):
- Up to 2 Amps Switching Current Maximum
- Up to 400 Volts Switching Voltage Maximum
- Form B (SPST) or Form C (SPDT):
- Up to 1 Amp Switching Current Maximum
- Up to 150 Volts Switching Voltage Maximum
- Form A (SPST):
- Physical Dimensions of Housing Configuration: 1.250”L x 0.313”D
- Custom Cable, Wire and Connector Options
- 100% US-based manufacturing operations
- State of Wisconsin certified Women’s Business Enterprise (WBE)
- More than 55 Years of Experience in Standard and Custom Magnetic Reed Sensor Designs
- Full in-house design and applications engineering support
2602 Series
2602 Series Magnetic Reed Sensors
| Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download their Corresponding Product Datasheets. |
 |
 |
 |
 |
|
 |
 |
||
| 2602-1051-100 | 2602-1166-100 | 2602-1301-100 | 2602-1900-100 | 2602-1901-100 | 2602-1901-900 | 2602-1965-100 | |||
| Contact Form | SPST-NO (A) | SPST-NO (A) | SPDT (C) | SPDT (C) | SPDT (C) | SPST-NC (B) | SPST-NO (A) | ||
| Contact Rating | Watts Max | 15 | 20 | 20 | 20 | 20 | 20 | 40 | |
| Voltage | Switching | Vdc Max | 200 | 200 | 150 | 150 | 150 | 150 | 400 |
| Breakdown | Vdc Max | 275 | 220 | 200 | 200 | 200 | 20 | 1000 | |
| Current | Switching | Amps Max | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Contact Resistance | Initial | Ohms Max | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.08 |
| Insulation | Ohms Max | 10 6 | 10 12 | 10 9 | 10 9 | 10 9 | 10 9 | 10 11 | |
| Operating Temperature | Celsius | -55° to 105° | -40° to 130° | -40° to 105° | -40° to 105° | -40° to 105° | -40° to 105° | -40° to 105° | |
2602 Series Magnetic Actuator
| Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet. |  |
| 2602-4002-000 | |
| Actuating Position | Click Here for Details |

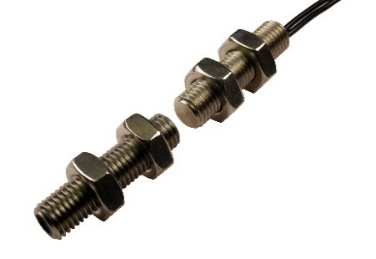

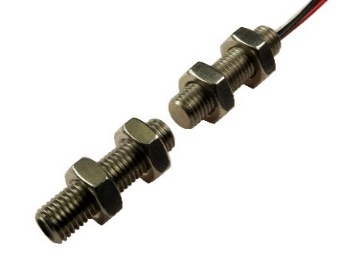

2602 Series Magnetic Reed Sensor Actuator Kits
| Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download its Corresponding Product Datasheet. |
 |
 |
 |
 |
 |
 |
| 2602-1051-400 | 2602-1166-400 | 2602-1301-400 | 2602-1900-400 | 2602-1901-400 | 2602-1965-400 | |
| Contact Form | SPST-NO (A) 15W 200V 1A | SPST-NO (A) 20W 200V 1A | SPDT (C) 20W 150V 1A | SPDT (C) 20W 150V 1A | SPDT (C) 20W 150V 1A | SPST-NO (A) 40W 400V 2A |
| Each Kit Contains One (1) Model 2602-4002-000 Magnetic Actuator with: | (1) Model 2602-1051-100 Magnetic Reed Sensor |
(1) Model 2602-1166-100 Magnetic Reed Sensor |
(1) Model 2602-1301-100 Magnetic Reed Sensor |
(1) Model 2602-1900-100 Magnetic Reed Sensor |
(1) Model 2602-1901-100 Magnetic Reed Sensor |
(1) Model 2602-1965-100 Magnetic Reed Sensor |
