2020 Series

About the 2020 Series Magnetic Reed Sensor:

  • Medium Plastic Rectangular Switch/Sensor with Built-in Mounting Capability
  • Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
  • All Forms and Types:
    • Up to 3 Amps Switching Current Maximum
    • Up to 400 Volts Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 2.630”L x 0.335”W x 0.345”H
  • Custom Cable, Wire and Connector Options
  • 100% US-based manufacturing operations
  • State of Wisconsin certified Women’s Business Enterprise (WBE)
  • More than 50 Years of Experience in Standard and Custom Magnetic Reed Sensor Designs
  • Full in-house design and applications engineering support

2020 Series Magnetic Reed Sensors

Please Click on the
Hyperlinked

Individual Chart
Model Numbers

to Request a Quotation or
to Download
its
Corresponding
Product Datasheet
.

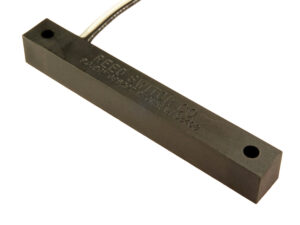

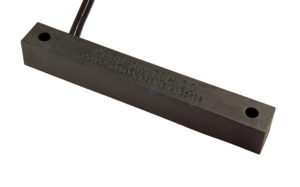

Model 2020-1901-100 Magnetic Reed Sensor Model 2020-1901-100 Magnetic Reed Sensor Model 2020-1901-900 Magnetic Reed Switch from Reed Switch Developments Corp. Model 2020-1960-100 Magnetic Reed Sensor
  2020-1710-100 2020-1901-100 2020-1901-900 2020-1960-100
Contact Form SPDT (C) SPDT (C) SPST-NC (B) SPST-NO (A)
Contact Rating Watts Max 100 20 20 60
Voltage Switching Vdc Max 120 150 150 400
Breakdown Vdc Max 150 200 200 1000
Current Switching Amps Max 3 1 1 3
Contact Resistance Initial Ohms Max 0.50 0.15 0.15 0.08
Insulation Ohms Max 10 10 10 9 10 9 10 11
Operating Temperature Celsius -40° to 105° -40° to 105° -40° to 105° -40° to 105°

2020 Series Magnetic Actuator

Please Click on the Hyperlinked
Individual Chart Model Number
to Request a Quotation or
to Download
its Corresponding
Product Datasheet
.

Reed Switch Product
  2020-4100-000
Actuating Position Click Here for Details

2020 Series Magnetic Reed Sensor Actuator Kits

Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download its Corresponding Product Datasheet.

Model 2020-1901-400 Magnetic Reed Sensor Actuator Kit



Model 2020-1901-400 Magnetic Reed Sensor Actuator Kit







Model 2020-1960-400 Magnetic Reed Sensor Actuator Kit

  2020-1710-400 2020-1901-400 2020-1960-400
Contact Form SPDT (C) 100W 120V 3A SPST-NC (B) 20W 150V 1A SPST-NO (A) 60W 400V 3A
Each Kit Contains One (1) Model 2020-4100-000 Magnetic Actuator and: (1) Model 2020-1710-100 Magnetic Reed Sensor  (1) Model 2020-1901-100 Magnetic Reed Sensor  (1) Model 2020-1960-100 Magnetic Reed Sensor
