2100 Series

About the 2100 Series Magnetic Reed Sensor:

Small Plastic Smooth Cylindrical Switch/Sensor
Currently available only in Form A with limited Magnetic Sensitivities, and Electrical Specifications:
- Form A (SPST):
  - Up to 500 mA Switching Current Maximum
  - Up to 170 VDC Switching Voltage Maximum
Physical Dimensions of Housing Configuration: 0.430”L x 0.180”D
Custom Cable, Wire and Connector Options
100% US-based manufacturing operations
State of Wisconsin certified Women’s Business Enterprise (WBE)
More than 50 Years of Experience in Standard and Custom Magnetic Reed Sensor Designs
Full in-house design and applications engineering support

Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet

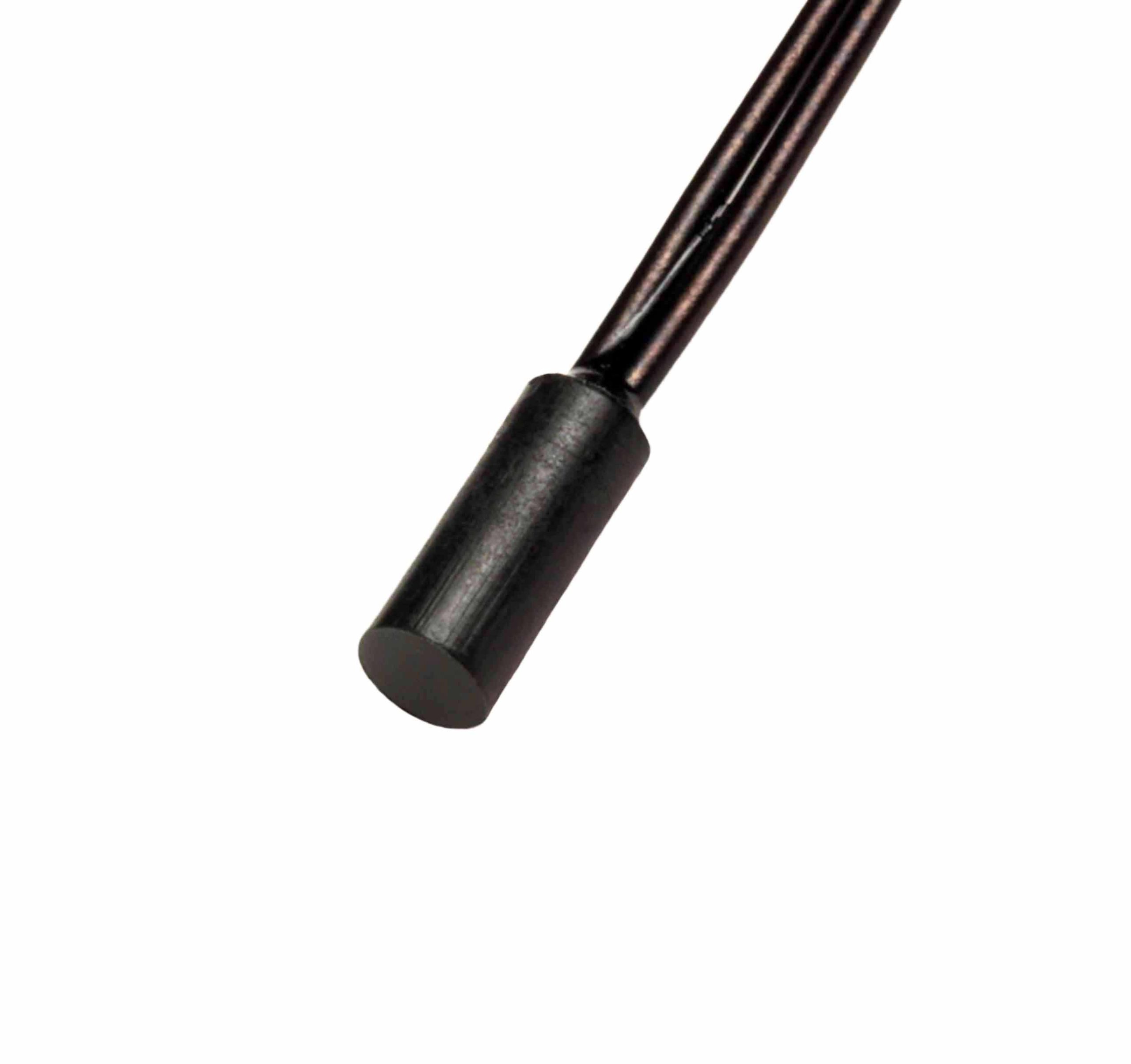

			2100-1091-100
Contact Form			SPST-NO (A)
Contact Rating		Watts Max	10
Voltage	Switching	Vdc Max	170
Voltage	Breakdown	Vdc Max	210
Current	Switching	Amps Max	0.50
Contact Resistance	Initial	Ohms Max	0.15
Contact Resistance	Insulation	Ohms Max	10 ⁶
Operating Temperature		Celsius	-55° to 105°

Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet

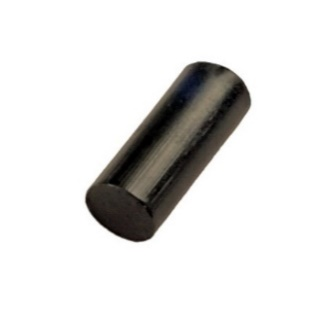

	2110-4902-000
Actuating Position	Click Here for Details

Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download its Corresponding Product Datasheet

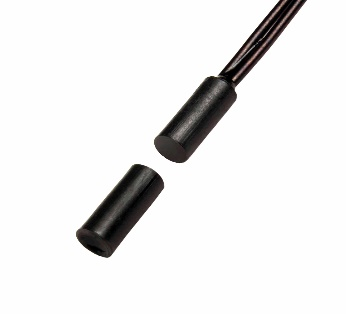

	2100-1091-400
Contact Form	SPST-NO (A) 10W 170V 0.5A
Each Kit Contains One (1) Model 2110-4902-000 Magnetic Actuator and:	(1) Model 2100-1091-100 Magnetic Reed Sensor
