Consumer Electronics

Magnetic Reed Switches, Sensors and Actuators for OEM Consumer Electronics

Consumer Electronics Magnetic Reed Switches  | Reed Switch Developments Corp

In the world of OEM consumer electronics, ongoing commercial demand for the “latest and greatest” in portable devices has led to ongoing requirements for magnetic-based reed switch sensors, switches and actuators, as well as bare reeds, in support of such requirements as:

  • Switching
  • Actuation
  • Monitoring of internal circuitry operations
  • On/off switching of notebooks, mobile phones and PCs
  • Fail-safe backup switch

Magnetic reed switches from Reed Switch Developments Corp. are known for their fast-acting, high-reliability performance. The switches are free from mechanical wear and are hermetically sealed, ensuring years of reliable service within demanding environments. Most assemblies are also UL recognized and RoHS/REACH compliant. With the company’s in-house development and manufacturing capabilities, custom reed switch developments of any sized quantity may be accommodated, with production lead times as short as ten business days.

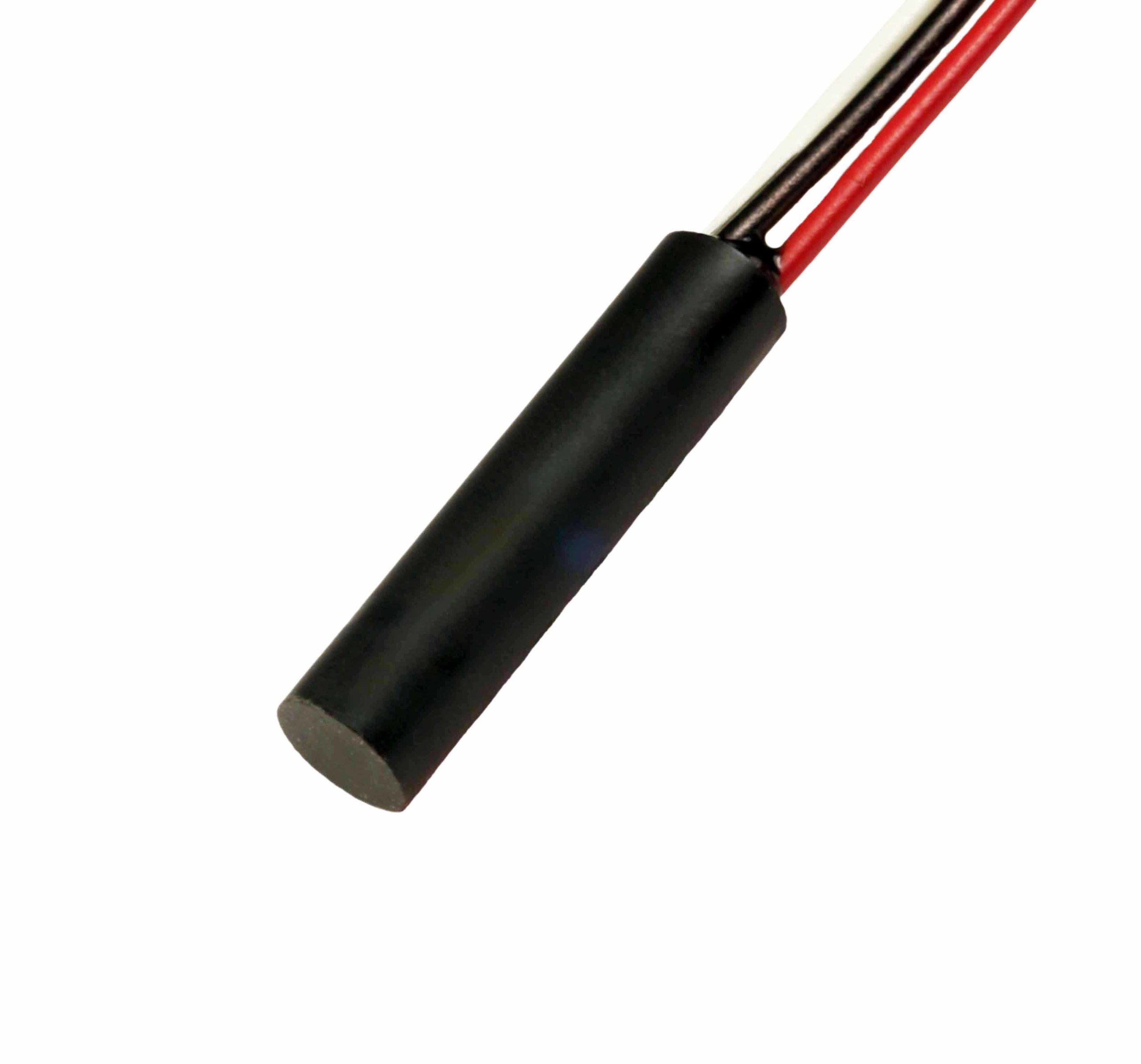

RSD 2230-1901-100 Magnetic Reed Switch SensorThey are available in SPST, with choice of NO or NC contacts, and SPDT configurations. Customers may choose from a variety of reed materials with varying sensitivities and wattages (0.25W – 100W). A wide selection of available case materials include Celanex, Celcon, Lexan, Epoxy and Valox. Aluminum, stainless steel and brass housings are also available for more extreme applications. Custom magnetic reed switch actuators are also available with a large selection of permanent magnets, mating with the switch. This includes custom molded magnets, configured to meet user-specific mounting, and operational requirements. Various wire and cable options are also available, with the most popular insulating materials in 18-26 AWG sizes. Connectors can also be supplied, including AMP, Molex, JST, Packard, threaded, weather sealed, snap lock, lug, and other types.

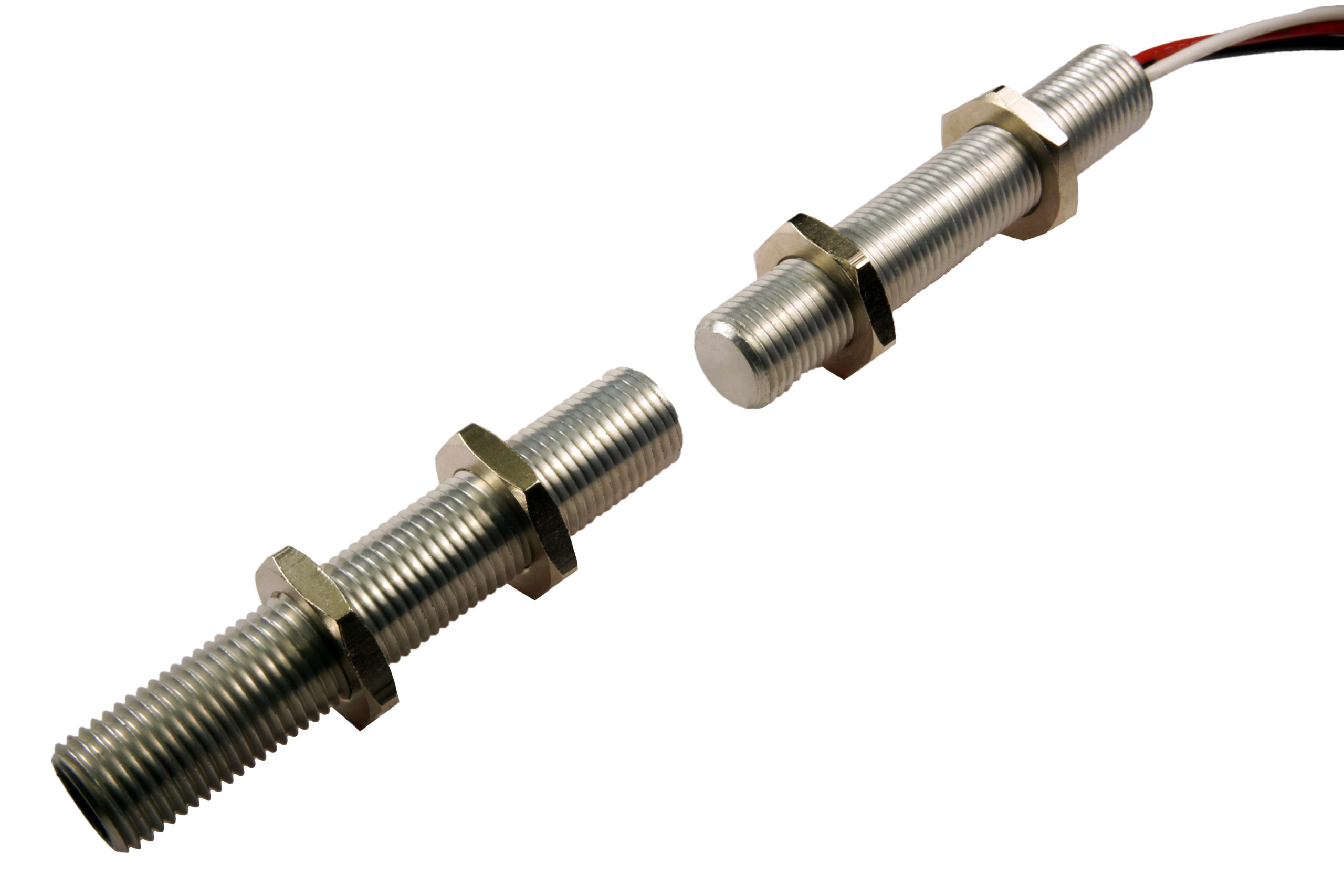

RSD 2501-1710-400 Magnetic Reed Switch Sensor + Actuator KitWith each custom reed switch project, the company’s talented in-house applications engineering team applies more than 50 years of field-proven experience, working in close collaboration with customers to identify a unique “best fit” solution. These discernments are based on a multitude of application and performance parameters, further drawing upon an extensive portfolio of thousands of legacy success stories. All Reed Switch Development Corp. products are 100% developed and assembled in the USA at the company’s state-of-the-art manufacturing facility in Racine, Wisconsin.

In addition to our standard product offerings, we can manufacture a custom solution to your exact requirements. Many of these can be produced, from concept to completion, in shorter lead times than can be found with most other industry solutions. Find out how Reed Switch Developments Corp. can help support your OEM Consumer Electronics.  Contact us today for a consultation.
