Magnets


Reed Switch Magnet Solutions


Reed Switch Developments Corp Bare Magnets

In addition to our standard line of sensors and actuators, Reed Switch Developments Corp. can supply your reed switch magnets as well. We offer various shapes, sizes and grades in the following magnets:

  • Alnico
  • Ceramic
  • Rare Earth
  • Flexible
  • Molded

A chart of our standard magnets is below.  To view specifications for each, please click on the corresponding designated link. We are your source for high quality reed switch magnet solutions! Let us show you what we can do for you!


No. 4000

0.125″Dia x 1.000″L

No. 4000 Magnet
Specifications

No. 4006

0.188″Dia x 1.188″L

No. 4006 Magnet
Specifications

No. 4013

0.150″Dia x 0.750″L

No. 4013 Magnet
Specifications

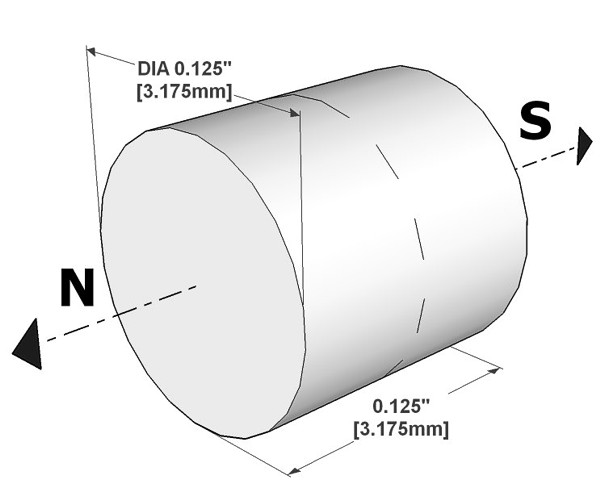

No. 4901

0.125″Dia x 0.125″L

No. 4901 Magnet
Specifications

No. 4932

0.250″Dia x 2.000″L

No. 4932 Magnet
Specifications

No. 4943

0.375″Dia x 0.100″L

No. 4943 Magnet
Specifications

No. 4004

0.100″Dia x 0.500″L

No. 4004 Magnet
Specifications

No. 4012

0.290″Dia x 1.000″L

No. 4012 Magnet
Specifications

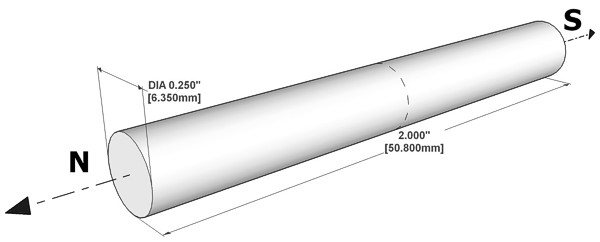

No. 4100

0.250″Dia x 2.000″L

No. 4100 Magnet
Specifications

No. 4906

.400″OD x .125″ID x .125″W

No. 4906 Magnet
Specifications

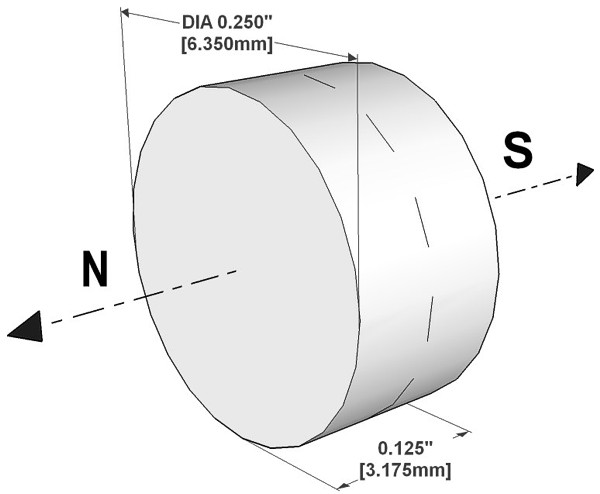

No. 4939

0.250″Dia x 0.125″L

No. 4939 Magnet
Specifications

No. 4002

0.170″Dia x 1.125″L

No. 4002 Magnet
Specifications

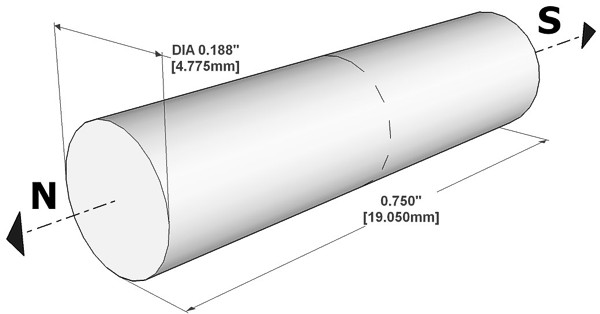

No. 4009

0.188″Dia x 0.750″L

No. 4009 Magnet
Specifications

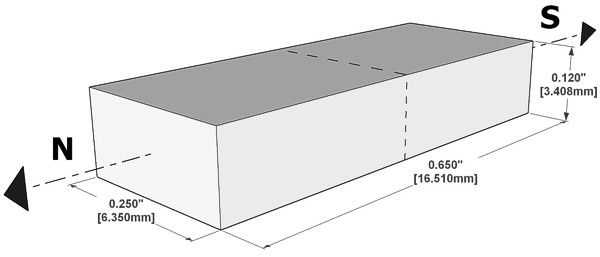

No. 4035

0.250″W x 0.650″L x 0.120″H

No. 4035 Magnet
Specifications

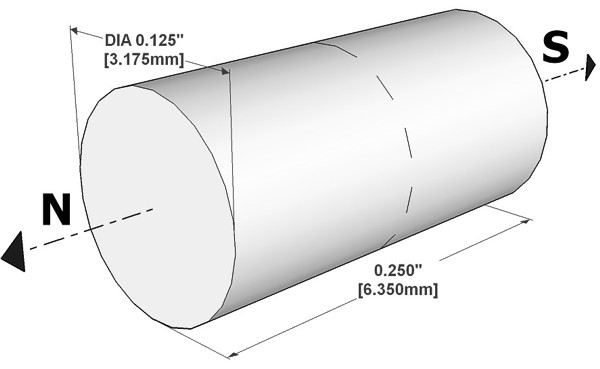

No. 4902

0.125″Dia x 0.250″L

No. 4902 Magnet
Specifications

No. 4936

0.250″Dia x 0.250″L

No. 4936 Magnet
Specifications
