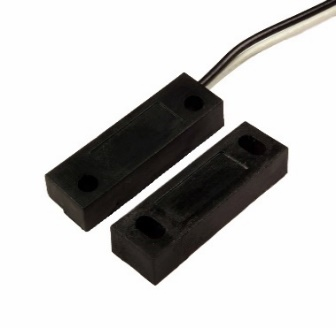

2060 Series

  • Small Plastic Rectangular Switch/Sensor with Built-in Mounting Capability
  • Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
    • Form A (SPST):
      • Up to 2 Amps Switching Current Maximum
      • Up to 400 Volts Switching Voltage Maximum
    • Form B (SPST) or Form C (SPDT):
      • Up to 1 Amp Switching Current Maximum
      • Up to 175 Volts Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 1.102”L x 0.339”W x 0.205”H
  • Custom Cable, Wire and/or Connector Options
  • Celanex Plastic Case with Leads Exiting on End
  • Standard Leads – 6″L, 24 AWG, PVC insulated, 105° C, UL 1007/1569, CSA type TR-64
  • Standard Lead Colors:
    • Form A (SPST): Black
    • Form B (SPST-NC): Black and White
    • Form C (SPDT): Common – White
    • Normally Open (NO) – Red,
    • Normally Closed (NC) – Black
  • Recognized to U.S. (UL) and Canadian (cUL) requirements under the Component Recognition Program of Underwriters Laboratories Inc. – UL File # E102207
  • RoHS Compliant
  • ACTUATORS SOLD SEPARATELY (unless purchased as a kit)

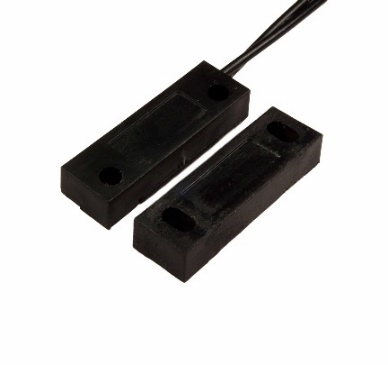

  • Form C (SPDT) Configuration
  • Variable Electrical Specifications and Magnetic Sensitivities
  • Variable Actuation Distances can be achieved using Alternative Actuator/Magnet
  • Wire/Cable Types and/or Lengths
  • Terminals/Connectors
  • Please Note: Some Customization Options May Negate UL/cUL Recognition or RoHS Compliance

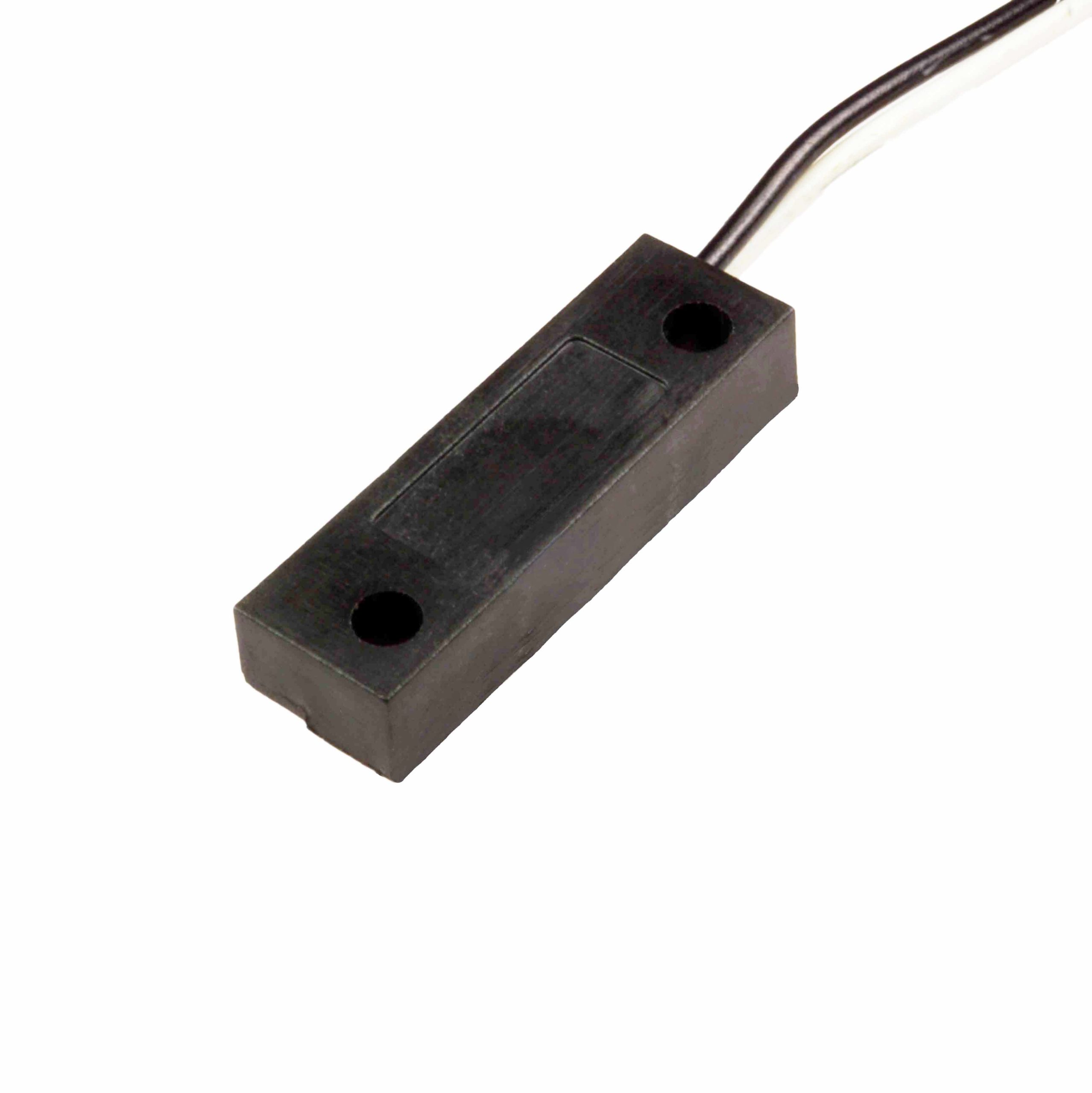

2060 SERIES SENSOR

Series 2060 Sensor Reed Switch Developments Corp

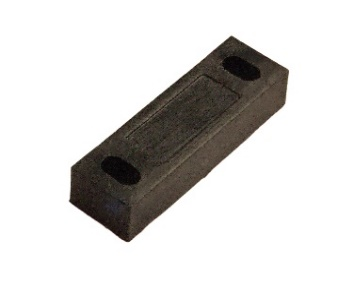

2060 SERIES ACTUATOR

Series 2060 Actuator Reed Switch Developments Corp



Category: .

SENSOR SPECIFICATIONS
Select Model Number for Spec. Sheets sm2060fwsensor 2060-1051-100 sm2060fwsensor 2060-1301-900 sm2060fwsensor 2060-1900-900
Contact Form SPST-NO (A) SPST (B) SPST (B)
Contact Rating Watts Max 15 5 20
Voltage Switching Vdc Max 200 175 150
Breakdown Vdc Max 275 200 200
Current Switching Amps Max 1.00 .250 1.00
Contact Resistance Initial Ohms Max .100 .100 .150
Insulation Ohms Max 106 109 109
Operate Temperature Celsius -55 to 105 -40 to 105 -40 to 105
ACTUATING SPECIFICATIONS
Magnetic Actuator sm2060actuator02 2065-4035-000
Actuating Position (click here for details)
