2105 Series

  • Small Plastic Smooth Cylindrical Switch/Sensor
  • Currently available only in Form A with limited Magnetic Sensitivities, and Electrical Specifications:
    • Form A (SPST):
      • Up to 500 mA Switching Current Maximum
      • Up to 170 VDC Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 0.550” L x 0.145” D
  • Custom Wire and/or Connector Options
  • Celanex Plastic Case
  • Standard Leads – 6″L, 24 AWG, 19 SPC, TFE UL/CSA 1213
  • Standard Lead Colors – Form A (SPST): Yellow
  • Not UL/cUL Recognized
  • RoHS Compliant
  • ACTUATORS SOLD SEPARATELY (unless purchased as a kit)
  • Variable Electrical Specifications and Magnetic Sensitivities
  • Variable Actuation Distances can be achieved using Alternative Actuator/Magnet
  • Wire Types and/or Lengths
  • Terminals/Connectors
  • Please Note: Some Customization Options May Negate RoHS Compliance

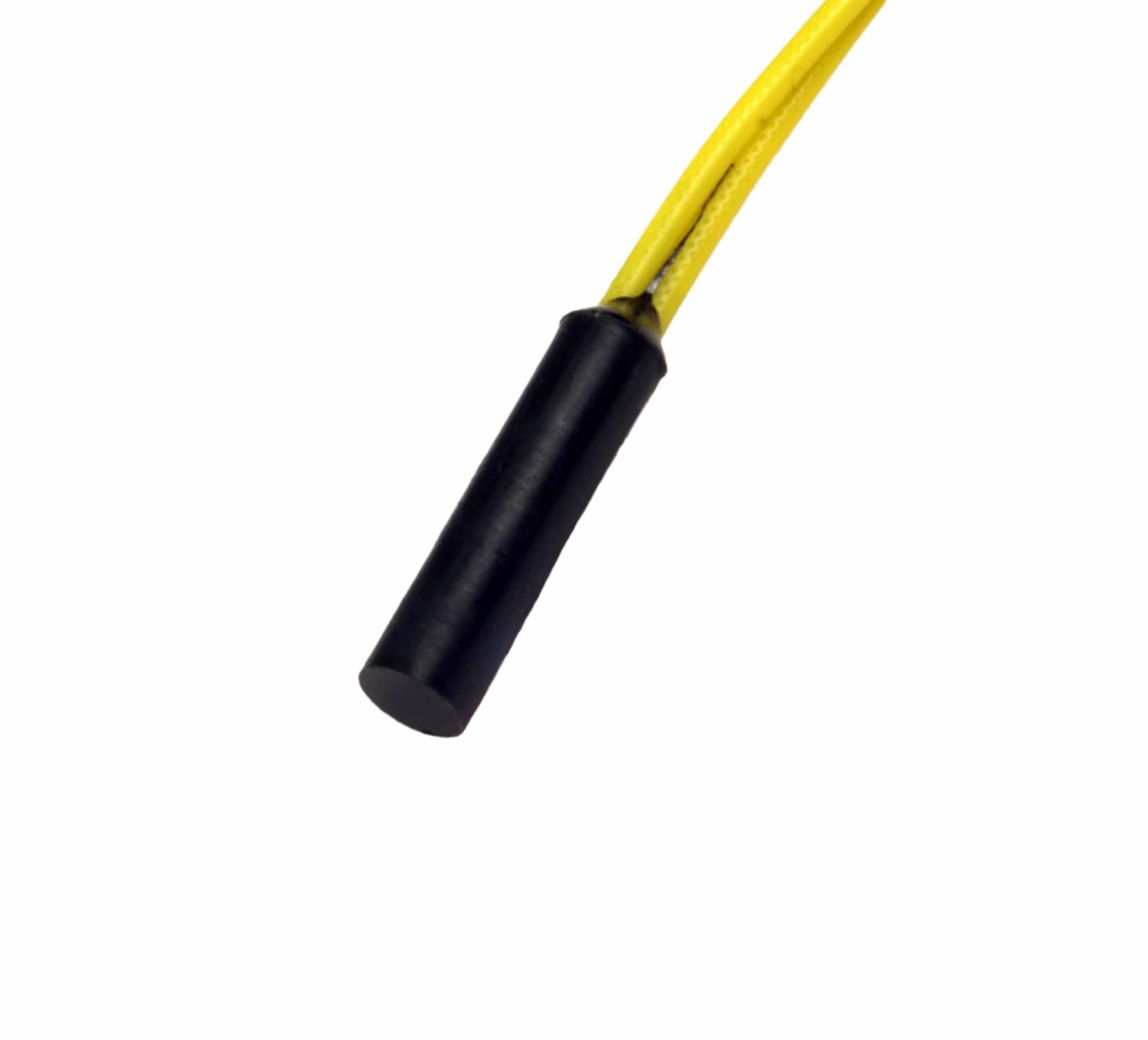

2105 SERIES SENSOR

Series 2100 Sensor Reed Switch Developments Corp

2105 SERIES ACTUATOR

Series 2100 Actuator Reed Switch Developments Corp



Category: .

SENSOR SPECIFICATIONS
Select Model Number
for Spec. Sheets
sm2104sensor2
2105-1091-600
Contact Form SPST-NO (A)
Contact Rating Watts Max 10
Voltage Switching Vdc Max 170
Breakdown Vdc Max 210
Current Switching Amps Max .500
Contact Resistance Initial Ohms Max .150
Insulation Ohms Max 106
Operate Temperature Celsius -55 to 105
ACTUATING SPECIFICATIONS
Magnetic Actuator sm2100actuator03
2110-4902-000
Actuating Position (click here for details)
