2220 Series

  • Medium Plastic Smooth Cylindrical Switch/Sensor
  • Currently available only in Form A with limited Magnetic Sensitivities, and Electrical Specifications:
    • Form A (SPST):
      • Up to 500 mA Switching Current Maximum
      • Up to 200VDC Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 0.600”L x 0.201”D
  • Custom Wire and/or Connector Options
  • Celanex Plastic Case
  • Standard Leads – 6″L, 24 AWG, PVC insulated, 105° C, UL 1007/1569, CSA type TR-64
  • Standard Lead Colors: Form A (SPST): Black
  • Recognized to U.S. (UL) and Canadian (cUL) requirements under the Component Recognition Program of Underwriters Laboratories Inc. – UL File # E102207
  • RoHS Compliant
  • ACTUATORS SOLD SEPARATELY (unless purchased as a kit)
  • Variable Electrical Specifications and Magnetic Sensitivities
  • Variable Actuation Distances can be achieved using Alternative Actuator/Magnet
  • Wire Types and/or Lengths
  • Terminals/Connectors
  • Please Note: Some Customization Options May Negate UL/cUL Recognition or RoHS Compliance

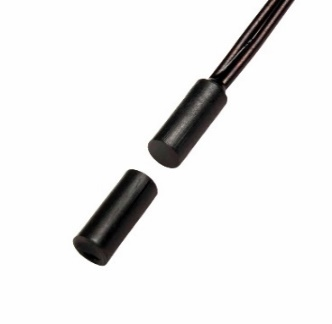

2220 SERIES SENSOR

Series 2220 Sensor Reed Switch Developments Corp

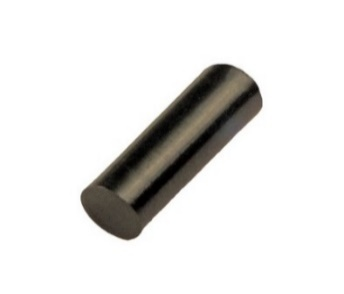

2220 SERIES ACTUATOR

 Switch Developments Corp



Category: .

SENSOR SPECIFICATIONS
Select Model Number for Spec. Sheets sm2220sensor02 2220-1091-100
Contact Form SPST-NO (A)
Contact Rating Watts Max 10
Voltage Switching Vdc Max 170
Breakdown Vdc Max 210
Current Switching Amps Max .500
Contact Resistance Initial Ohms Max .150
Insulation Ohms Max 106
Operate Temperature Celsius -55 to 105
ACTUATING SPECIFICATIONS
Magnetic Actuator sm2220actuator02 2220-4938-000
Actuating Position (click here for details)
