2052 Series

About the 2052 Series Magnetic Reed Switch Sensor:

  • Large Plastic Rectangular Switch/Sensor with Built-in Mounting Tabs
  • Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
    • All Forms and Types:
      • Up to 3 Amps Switching Current Maximum
      • Up to 400 Volts Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 2.530”L x 0.750”W x 0.625”H
  • Custom Cable, Wire and/or Connector Options
  • Applications Engineering Support
  • Standard Cable – 18″ standard, 20 AWG, 2 Conductor, Grey
  • Standard Lead Colors:
    • Form A (SPST): Red and Black
    • Form B (SPST-NC): Black and White
    • Form C (SPDT): Common – White,
    • Normally Open (NO) – Red,
    • Normally Closed (NC) – Black
  • Recognized to U.S. (UL) and Canadian (cUL) requirements under the Component Recognition Program of Underwriters Laboratories Inc. – UL File # E102207
  • RoHS Compliant
  • ACTUATORS SOLD SEPARATELY (unless purchased as a kit)
  • Form B (SPST-NC) – Normally Closed Configuration
  • Form C (SPDT) Configuration
  • Variable Electrical Specifications and Magnetic Sensitivities
  • Variable Actuation Distances can be achieved using Alternative Actuator/Magnet
  • Wire/Cable Types and/or Lengths
  • Terminals/Connectors

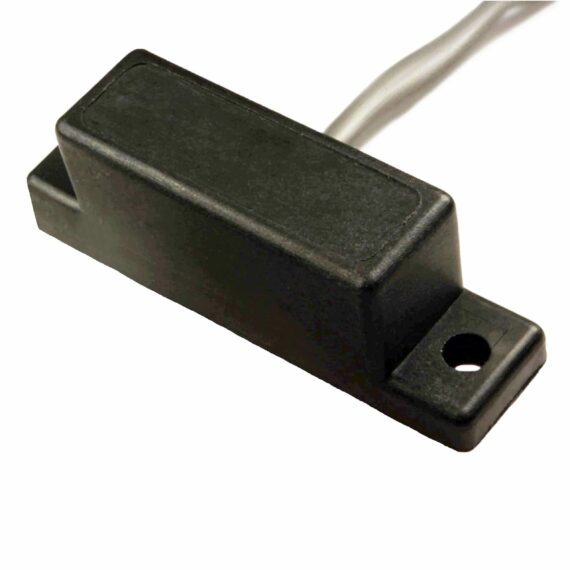

2052 SERIES REED SWITCH SENSOR

Series 2052 Sensor Reed Switch Developments Corp

2052 SERIES REED SWITCH ACTUATOR

Series 2052 Actuator Reed Switch Developments Corp

Dimensions 2.530 × 0.750 × 0.625 in


Category: .

SENSOR SPECIFICATIONS
Select Model Number for Spec. Sheets sm2052sensor02 2052-1960-000 sm2052sensor03 2052-1965-000
Contact Form SPST-NO (A) SPST-NO (A)
Contact Rating Watts Max 60 40
Voltage Switching Vdc Max 400 400
Breakdown Vdc Max 1000 1000
Current Switching Amps Max 3.00 2.00
Contact Resistance Initial Ohms Max .080 .080
Insulation Ohms Max 1011 1011
Operate Temperature Celsius -40 to 105 -40 to 105
ACTUATOR SPECIFICATIONS
Magnetic Actuator sm2052actuator03 2053-4105-000
Actuating Position (click here for details)
