2450-1960-100 Magnetic Reed Sensoropens IMAGE file

2450 Series

Categories: , , , ,

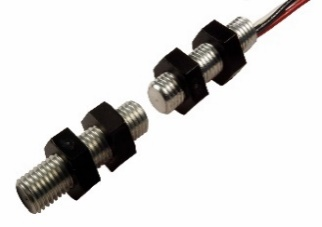

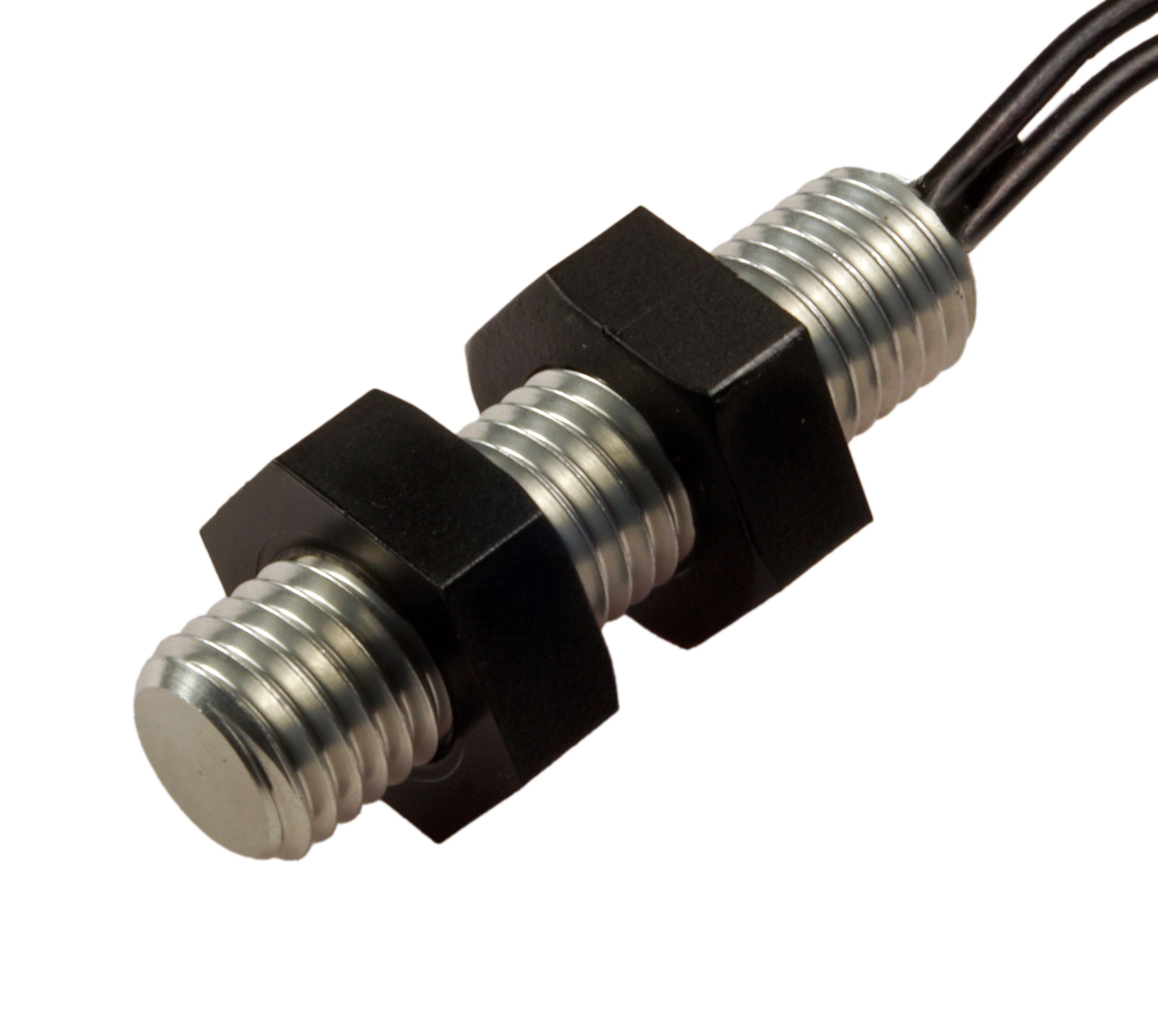

About 2450 Series Magnetic Reed Sensors:

  • Medium Threaded Aluminum Cylindrical Switch/Sensor – 5/16-24 Thread
  • Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
    • Form A (SPST):
      • Up to 3 Amps Switching Current Maximum
      • Up to 400 Volts Switching Voltage Maximum
    • Form B (SPST) or Form C (SPDT):
      • Up to 1 Amp Switching Current Maximum
      • Up to 150 Volts Switching Voltage Maximumm
  • Physical Dimensions of Housing Configuration: 1.250”L x 0.313”D
  • Custom Cable, Wire and Connector Options
  • 100% US-based manufacturing operations
  • State of Wisconsin certified Women’s Business Enterprise (WBE)
  • More than 55 Years of Experience in Standard and Custom Magnetic Reed Sensor Designs
  • Full in-house design and applications engineering support

2450 Series Magnetic Reed Sensors

Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download their Corresponding Product Datasheet
Reed Switch Product
Reed Switch Product
Reed Switch Product
Model 2450-1901-900 Magnetic Reed Switch
Reed Switch Product
  2450-1166-100 2450-1900-100 2450-1901-100 2450-1901-900  2450-1960-100
Contact Form     SPST-NO (A) SPDT (C) SPDT (C) SPST-NC (B) SPST-NO (A)
Contact Rating Watts Max 20 20 20 20 60
Voltage Switching Vdc Max 200 150 150 150 400
Breakdown Vdc Max 220 200 200 200 1000
Current Switching Amps Max 1 1 1 1 3
Contact Resistance Initial Ohms Max 0.15 0.15 0.15 0.15 N/A
Insulation Ohms Max 10 12 10 9 10 9 10 9 10 11
Operating Temperature Celsius -40° to 130° -40° to 105° -40° to 105° -40° to 105° -40° to 105°

2450 Series Magnetic Actuator

Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet
Reed Switch Product
  2450-4907-000
Actuating Position Click Here for Details

2450 Magnetic Reed Sensor Actuator Kits

Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download their Corresponding Product Datasheets
Reed Switch Product
Reed Switch Product
Reed Switch Product
Reed Switch Product
2450-1166-400 2450-1900-400 2450-1901-400 2450-1960-400
Contact Form SPST-NO (A) 20W 200V 1A SPDT (C) 20W 150V 1A SPDT (C) 20W 150V 1A SPST-NO (A) 60W 400V 3A
Each Kit Contains One (1) Model 2450-4907-000 Magnetic Actuator and: (1) Model 2450-1166-100 Magnetic Reed Sensor
 (1) Model 2450-1900-100 Magnetic Reed Sensor
 (1) Model 2450-1901-100 Magnetic Reed Sensor
 (1) Model 2450-1960-100 Magnetic Reed Sensor
