2501 Series

  • Large Threaded Aluminum Cylindrical Switch/Sensor – 3/8-27 Mechanical Thread
  • Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
    • All Forms and Types:
      • Up to 3 Amps Switching Current Maximum
      • Up to 400 Volts Switching Voltage Maximum
  • Physical Dimensions of Housing Configuration: 2.125”L x 0.375”D
  • Custom Cable, Wire and/or Connector Options
  • Anodized Aluminum Cup-style Housing with 3/8-27 Mechanical Threads
  • Two Nylon Jam Nuts included with both Sensors and Actuators
  • Standard Leads – 18″L, 22 AWG, PVC insulated, 105° Celsius, UL 1007/1569, CSA type TR-64
  • Standard Lead Colors:
    • Form A (SPST): Black
    • Form B (SPST-NC): Black and White
    • Form C (SPDT): Common – White
    • Normally Open (NO) – Red
    • Normally Closed (NC) – Black
  • High Power Contact Rating
  • Recognized to U.S. (UL) and Canadian (cUL) requirements under the Component Recognition Program of Underwriters Laboratories Inc. – UL File # E102207
  • RoHS Compliant
  • ACTUATORS SOLD SEPARATELY (unless purchased as a kit)
  • Form B (SPST-NC) – Normally Closed Configuration
  • Variable Electrical Specifications and Magnetic Sensitivities
  • Variable Actuation Distances can be achieved using Alternative Actuator/Magnet
  • Wire/Cable Types and/or Lengths
  • Terminals/Connectors
  • Please Note: Some Customization Options May Negate UL/cUL Recognition or RoHS Compliance

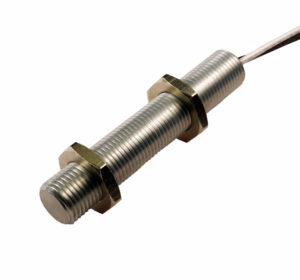

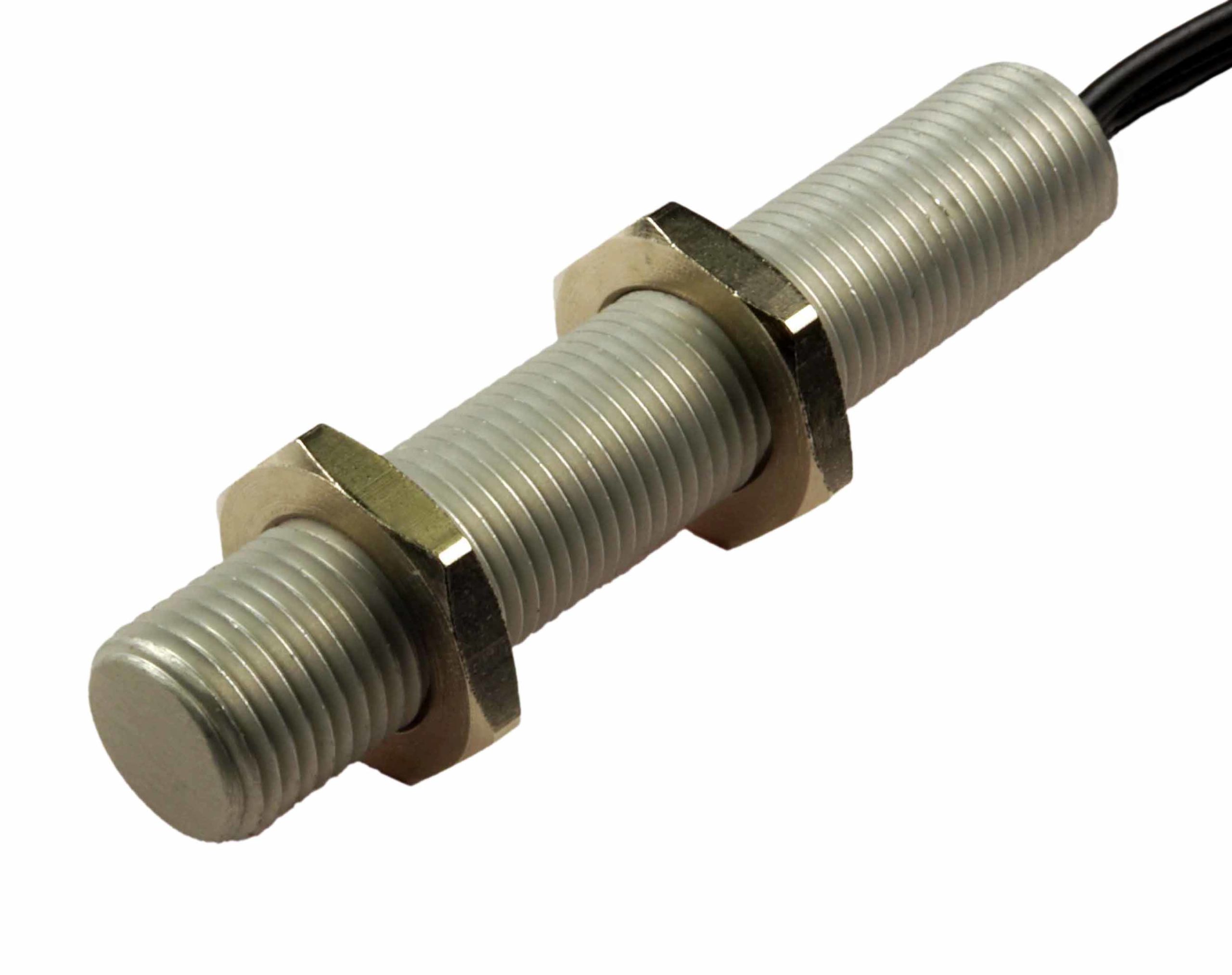

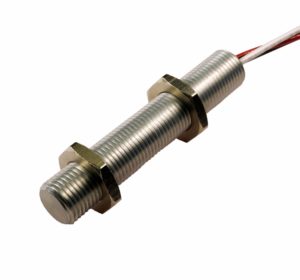

2501 SERIES SENSOR

Series 2501 Sensor Reed Switch Developments Corp

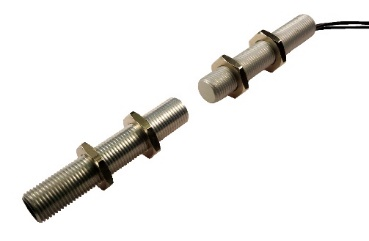

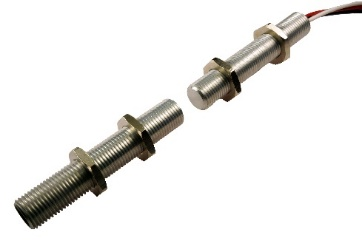

2501 SERIES ACTUATOR

Series 2501 Actuator Reed Switch Developments Corp



Category: .

SENSOR SPECIFICATIONS
Select Model Number for Spec. Sheets sm2500sensor02 2501-1960-100 2501-1710-100 2501-1710-100
Contact Form SPST-NO (A) SPDT (C)
Contact Rating Watts Max 60 100
Voltage Switching Vdc Max 400 120
Breakdown Vdc Max 1000 150
Current Switching Amps Max 3.00 3.00
Contact Resistance Initial Ohms Max .080 .500
Insulation Ohms Max 1011 1010
Operate Temperature Celsius -40 to 105 -40 to 105
ACTUATING SPECIFICATIONS
Magnetic Actuator sm2500actuator02 2501-4100-000
Actuating Position (click here for details)
