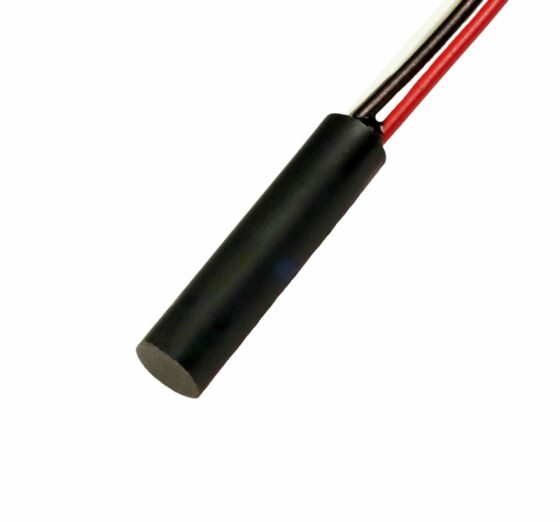

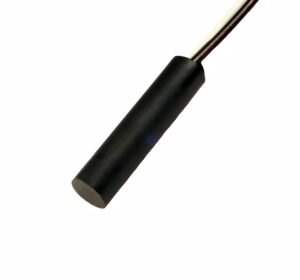

- Medium Plastic Smooth Cylindrical Switch/Sensor
- Available in Various Forms, Magnetic Sensitivities, and Electrical Specifications:
- Form A (SPST):
- Up to 1 Amp Switching Current Maximum
- Up to 200 Volts Switching Voltage Maximum
- Form B (SPST) or Form C (SPDT):
- Up to 1 Amp Switching Current Maximum
- Up to 150 Volts Switching Voltage Maximum
- Form A (SPST):
- Physical Dimensions of Housing Configuration: 1.000” L x 0.245” D
- Custom Cable, Wire and Connector Options
- 100% US-based manufacturing operations
- State of Wisconsin certified Women’s Business Enterprise (WBE)
- More than 55 Years of Experience in Standard and Custom Magnetic Reed Sensor Designs
- Full in-house design and applications engineering support
2230 Series
2230 Series Magnetic Reed Sensors
| Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet. |
 |
|
 |
|
|
 |
||
| 2230-1051-100 | 2230-1166-100 | 2230-1301-100 | 2230-1900-100 | 2230-1901-100 | 2230-1901-900 | |||
| Contact Form | SPST-NO (A) | SPST-NO (A) | SPDT (C) | SPDT (C) | SPDT (C) | SPST-NC (B) | ||
| Contact Rating | Watts Max | 15 | 20 | 20 | 20 | 20 | 20 | |
| Voltage | Switching | Vdc Max | 200 | 200 | 150 | 150 | 150 | 150 |
| Breakdown | Vdc Max | 275 | 220 | 200 | 200 | 200 | 200 | |
| Current | Switching | Amps Max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Contact Resistance | Initial | Ohms Max | 0.10 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Insulation | Ohms Max | 10 6 | 10 12 | 10 9 | 10 9 | 10 9 | 10 9 | |
| Operating Temperature | Celsius | -55° to 105° | -40° to 130° | -40° to 105° | -40° to 105° | -40° to 105° | -40° to 105° | |
2230 Series Magnetic Actuator
| Please Click on the Hyperlinked Individual Chart Model Number to Request a Quotation or to Download its Corresponding Product Datasheet. |
 |
| 2230-4013-000 | |
| Actuating Position | Click Here for Details |

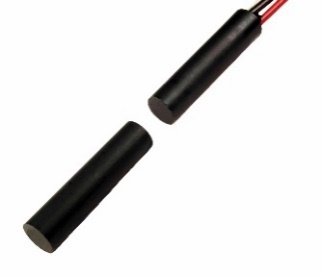

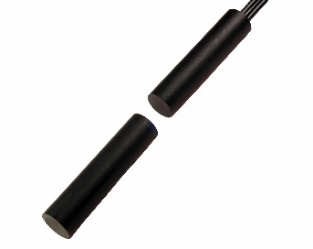

2230 Magnetic Reed Sensor Actuator Kits
| Please Click on the Hyperlinked Individual Chart Model Numbers to Request a Quotation or to Download their Corresponding Product Datasheets. |  |
 |
 |
 |
 |
||
| 2230-1051-400 | 2230-1166-400 | 2230-1301-400 | 2230-1900-400 | 2230-1901-400 | |||
| Contact Form | SPST-NO (A) 15W 200V 1A | SPST-NO (A) 20W 200V 1A | SPDT (C) 20W 150V 1A | SPDT (C) 20W 150V 1A | SPDT (C) 20W 150V 1A | ||
| Each Kit Contains One (1) Model 2230-4013-000 Magnetic Actuator and: |
(1) Model 2230-1051-100 Magnetic Reed Sensor |
(1) Model 2230-1166-100 Magnetic Reed Sensor |
(1) Model 2230-1301-100 Magnetic Reed Sensor |
(1) Model 2230-1900-100 Magnetic Reed Sensor |
(1) Model 2230-1901-100 Magnetic Reed Sensor |
||
